DWM-157: Modem USB 3G+ H+

[Pondera]

Pubblicato firmware DWM-157 C1 3.1.2EU 20200225.

N.B. La data di edizione che pubblichiamo è quella di creazione delle cartelle interne del fw.

Codice Seleziona Espandi

DWM-157 Rev.C1 HSPA+ USB Adapter Firmware Release Notes

Firmware: 3.1.2EU
Hardware: C1
Date: 2020/03/02

Enhancements:
1. Fixed disconnect button issue in Connection Manager (Windows).

----------

Firmware: 3.1.1EU
Hardware: C1
Date: 2020/01/20

Enhancements:
1. Support macOS 10.15.x
2. Fixed for using with macOS: When SIM card has enabled PIN then the Connection Manager demands that the correctly entered PIN is wrong.

----------

Firmware: 3.1.0EU
Hardware: C1
Date: 2019/12/27

Enhancements:
1. Support Windows 10 Version 1903
2. Support macOS 10.15.x

Known issue:
macOS: When SIM card has enabled PIN then the Connection Manager demands that the correctly entered PIN is wrong. Ignore this and continue.

----------

Firmware: 3.0.8EU
Hardware: C1
Date: 2018/07/08

Enhancements:
1. Update latest APN.
2. Update D-Link digital signature.

----------

Firmware: 3.0.7EU
Hardware: C1
Date: 2018/03/02

Enhancements:
1. Update latest APN.
2. Update D-Link digital signature.

----------

Firmware: 3.0.7EU
Hardware: C1
Date: 2018/03/02

Enhancements:
1. Support macOS 10.14

----------

Firmware: 3.0.4EU
Hardware: C1
Date: 2017/5/17

Enhancements:
1. Fix MAC SMS issue.
2. Fix USSD issue.

Anche la C1 è basata su MediaTek MT6280 come per la B1 quindi si potrebbe ipotizzare di effettuare un upgrade se si capisce bene come utilizzare il MediaTek Flash Download Tool...


Revisionati 1° & 2° messaggio, aggiornati i collegamenti ed aggiunta la documentazione specifica del marchio per la C1.
Per ogni revisione lasciamo gli ultimi due o tre fw pubblicati.

[Pondera]

In una prova su un Win7_64bit l'installazione dell'utilità di gestione connessione D-Link non andava a buon fine per motivi non chiari ed in particolare nell'installazione del dispositivo chiavetta restava senza driver:

COM(comm_if) - HW ID: USB\VID_2001&PID_7D02&REV_0300&MI_00

che sembra non esserci nei file .INF dei driver nel firmware sulla chiavetta.
Cercato in Rete risultava:

D-Link Mobile Broadband

e trovato di seguito l'ultima versione del 2015:

https://uk.drvhub.net/devices/network/d-link/mobile-broadband-5

Poi è andato insieme con gli altri presenti nei due file .INF dei driver nel firmware sulla chiavetta:

Modem
- D-Link HSPA+DataCard Diagnostic Interface

Porte (COM e LPT)
- D-Link HSPA+DataCard Debug Port
- D-Link HSPA+DataCard NMEA Device
- D-Link HSPA+DataCard Speech Port

Schede di rete
- D-Link Mobile Broadband Device

[Pondera]

Nella versione mediorientale 2.0.2ME (diag. intl. fw v1.2.7) analoga all'ultima europea 2.0.3EU (diag. intl. fw v1.8.1):

D310A_1400_V5.3.0.9_DTLW5(2.0.2ME).exe Nuovo collegamento

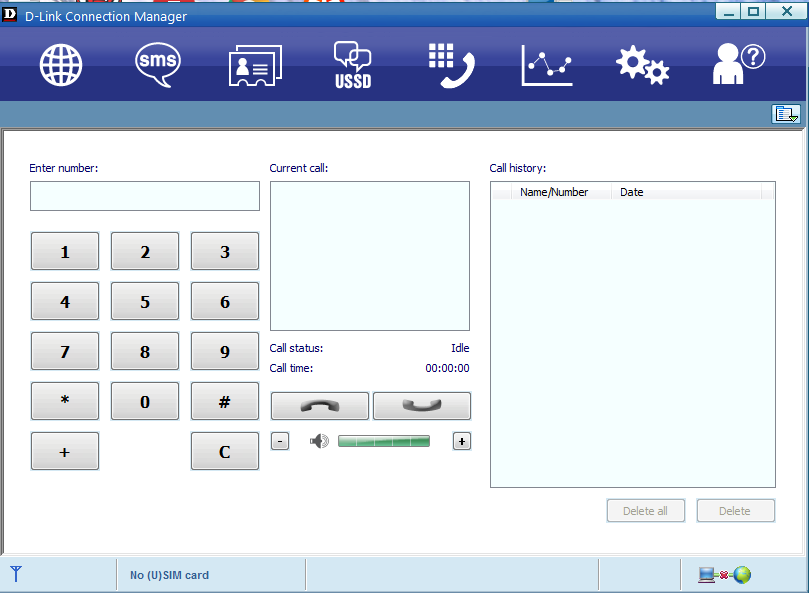

Manual B1 EN - Voice Call Pag. 15

si può utilizzare anche la chiamata voce sfruttando l'audio ed il microfono del PC a cui è connessa la DWM-157 B1:




Upgrade Log

Codice Seleziona Espandi

start to update.
OPERAZIONE RIUSCITA: il processo "USBSwitchTool.exe" con il PID 2800 è stato ter
minato.
waiting switch...
[General setting]
[14:03:42][5164]    COM port = USB
[14:03:42][5164]    Check bbchip hw ver = Yes
[14:03:42][5164]    DA filepath = MTK_AllInOne_DA.bin
[14:03:42][5164][Download setting]
[14:03:42][5164]    Scatter filepath = .\img\BROADMOBI80_DONGLE_DCMP_BB.cfg
[14:03:42][5164]    Download list = ARM_BL ARM_EXT_BL PRIMARY_MAUI
[14:03:42][5164]    Watchdog timer enabled = Yes
[14:03:42][5164]DownloadHandle::DownloadHandle
[14:03:42][5164]    (v)ARM_BL
[14:03:42][5164]    (v)ARM_EXT_BL
[14:03:42][5164]    (v)PRIMARY_MAUI
[14:03:42][5164]Scatter doesn't exit!

D:\software\datacard\D310A_1200_V4.9.2.6_DTLWE\D310A_1200_V4.9.2.6_DTLWE\image\B
ROADMOBI80_DONGLE_DCMP_BB.cfg
[14:03:42][5164]DownloadCommand::Execute
[14:03:42][5164]Searching for a newly created USB COM port...
[14:03:42][5164]USB COM port detected: COM13
[14:04:27][5164]COM port is open.
[14:04:27][5164]Trying to sync with the target...
[14:04:27][5164]Downloading bootloader...
[14:04:30][5164]Downloading images...
[14:04:31][5164]live update = 0
[14:04:31][5164]10% of image data sent to the target. 488.778 KBps.
[14:04:32][5164]15% of image data sent to the target. 489.705 KBps.
[14:04:32][5164]20% of image data sent to the target. 487.116 KBps.
[14:04:33][5164]25% of image data sent to the target. 488 KBps.
[14:04:34][5164]30% of image data sent to the target. 488.592 KBps.
[14:04:34][5164]35% of image data sent to the target. 489.133 KBps.
[14:04:35][5164]40% of image data sent to the target. 488.639 KBps.
[14:04:35][5164]45% of image data sent to the target. 489.054 KBps.
[14:04:36][5164]50% of image data sent to the target. 488 KBps.
[14:04:37][5164]55% of image data sent to the target. 488.323 KBps.
[14:04:37][5164]60% of image data sent to the target. 488.66 KBps.
[14:04:38][5164]65% of image data sent to the target. 487.88 KBps.
[14:04:38][5164]70% of image data sent to the target. 488.2 KBps.
[14:04:39][5164]75% of image data sent to the target. 488 KBps.
[14:04:40][5164]80% of image data sent to the target. 488.222 KBps.
[14:04:40][5164]85% of image data sent to the target. 488.042 KBps.
[14:04:41][5164]100% of image data sent to the target. 385.701 KBps.
[14:04:44][5164]Image Download succeeded.
[14:04:44][5164]Ready to download iso...
[14:04:44][5164]Waiting for target enter META mode...
[14:04:44][5164]in META mode, start Downloading iso...
[14:04:54][5164]5% of iso data sent to the target.
[14:04:59][5164]10% of iso data sent to the target.
[14:05:03][5164]15% of iso data sent to the target.
[14:05:07][5164]20% of iso data sent to the target.
[14:05:12][5164]25% of iso data sent to the target.
[14:05:16][5164]30% of iso data sent to the target.
[14:05:20][5164]35% of iso data sent to the target.
[14:05:24][5164]40% of iso data sent to the target.
[14:05:29][5164]45% of iso data sent to the target.
[14:05:33][5164]50% of iso data sent to the target.
[14:05:37][5164]55% of iso data sent to the target.
[14:05:41][5164]60% of iso data sent to the target.
[14:05:46][5164]65% of iso data sent to the target.
[14:05:50][5164]70% of iso data sent to the target.
[14:05:54][5164]75% of iso data sent to the target.
[14:05:58][5164]80% of iso data sent to the target.
[14:06:02][5164]85% of iso data sent to the target.
[14:06:07][5164]90% of iso data sent to the target.
[14:06:11][5164]95% of iso data sent to the target.
[14:06:15][5164]100% of iso data sent to the target.
[14:06:19][5164]Wait for write PCSuite version!
[14:06:19][5164]nvram db file path: .\img\BPLGUInfoCustomAppSrcP_MT6280_S01_MOLY
_WR8_W1231_DC_WG_MP_V3
[14:06:22][5164]WritePCSuiteVersion PCSuite version = W2.0.2.1696_M4.1.7.8_L7.0.
3_DTLW5_D310A!
[14:06:22][5164]Success to upload iso file.
[14:06:25][5164]All operations are done.
[14:06:25][5164]update is done.
Premere un tasto per continuare . . .


[Pondera]

Banda GSM (GSM/GPRS/EDGE)
850/900/1800/1900 MHz
Classe di potenza 4 (850/900 MHz)
Classe di potenza 1 (1800/1900 MHz)

Banda UMTS/HSUPA
850/2100 MHz oppure 850/1900 MHz oppure 900/2100 MHz
Classe di potenza 3 (+24 dBm)

La chiavetta modem DWM-157 risulta compatibile anche con le nuove esigenze di banda dell'operatore iliad:

https://www.universofree.com/2020/01/01/iliad-italia-banda-2100-free-mobile-asta-5g-e-roaming-3g-orange/
